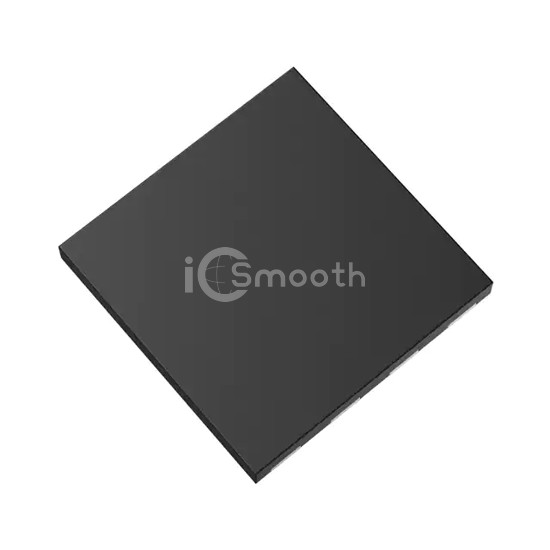

Name: TK210V65Z,LQ
Brand: Toshiba Semiconductor and Storage
SKU: TK210V65Z,LQ
Price: 2.78 USD
Availability: InStock

REF: TK210V65Z,LQ Toshiba Semiconductor and Storage

TK210V65Z,LQ

Toshiba Semiconductor and Storage

MOSFET N-CH 650V 15A 5DFN

TK210V65Z,LQ is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET N-CH 650V 15A 5DFN. Key specifications: mounting type Surface Mount, operating temperature 150°C, package / case 4-VSFN Exposed Pad.

Datasheet Request a Quote

In Stock: 4,977

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	650 V
Current - Continuous Drain (Id) @ 25°C	15A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	210mOhm @ 7.5A, 10V
Vgs(th) (Max) @ Id	4V @ 610µA
Gate Charge (Qg) (Max) @ Vgs	25 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	1370 pF @ 300 V
FET Feature	-
Power Dissipation (Max)	130W (Tc)
Operating Temperature	150°C
Mounting Type	Surface Mount
Supplier Device Package	4-DFN-EP (8x8)
Package / Case	4-VSFN Exposed Pad
