Name: TK20P04M1,RQ(S
Brand: Toshiba Semiconductor and Storage
SKU: TK20P04M1,RQ(S
Availability: InStock

REF: TK20P04M1,RQ(S Toshiba Semiconductor and Storage

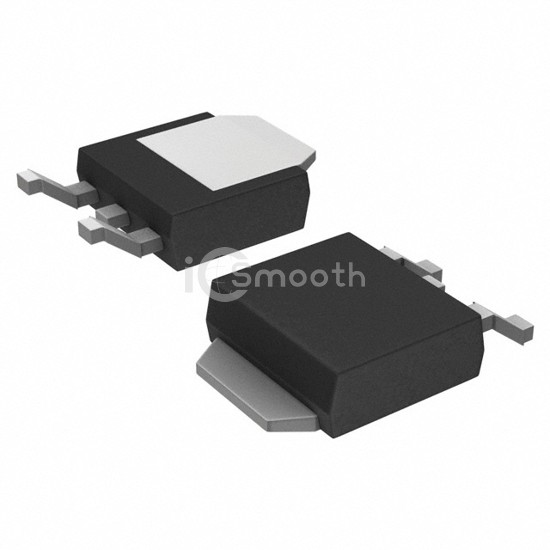

TK20P04M1,RQ(S

MOSFET N-CH 40V 20A DPAK

TK20P04M1,RQ(S is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET N-CH 40V 20A DPAK. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case TO-252-3, DPak (2 Leads + Tab), SC-63.

Datasheet Request a Quote

In Stock: 3,929

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	20A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	29mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	2.3V @ 100µA
Gate Charge (Qg) (Max) @ Vgs	15 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	985 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	27W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	DPAK
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
