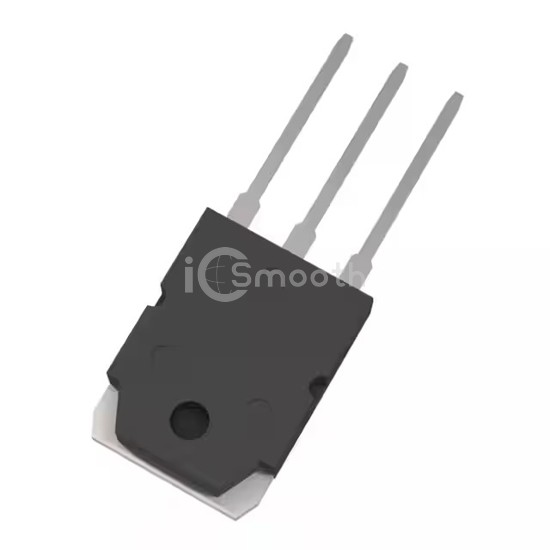

Name: TK20J60W,S1VE
Brand: Toshiba Semiconductor and Storage
SKU: TK20J60W,S1VE
Price: 5.10 USD
Availability: InStock

REF: TK20J60W,S1VE Toshiba Semiconductor and Storage

TK20J60W,S1VE

Toshiba Semiconductor and Storage

X35 PB-F POWER MOSFET TRANSISTOR

TK20J60W,S1VE is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. X35 PB-F POWER MOSFET TRANSISTOR. Key specifications: mounting type Through Hole, operating temperature 150°C, package / case TO-3P-3, SC-65-3.

Datasheet Request a Quote

In Stock: 57

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600 V
Current - Continuous Drain (Id) @ 25°C	20A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	155mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	3.7V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	48 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	1680 pF @ 300 V
FET Feature	-
Power Dissipation (Max)	165W (Tc)
Operating Temperature	150°C
Mounting Type	Through Hole
Supplier Device Package	TO-3P(N)
Package / Case	TO-3P-3, SC-65-3
