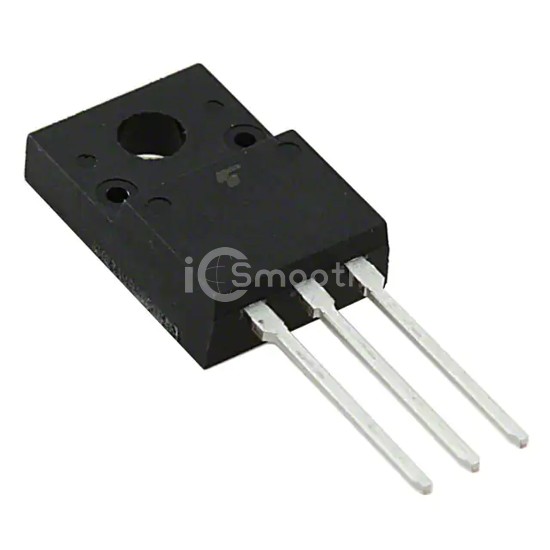

Name: TK20A25D,S5Q(M
Brand: Toshiba Semiconductor and Storage
SKU: TK20A25D,S5Q(M
Availability: InStock

REF: TK20A25D,S5Q(M Toshiba Semiconductor and Storage

TK20A25D,S5Q(M

MOSFET N-CH 250V 20A TO220SIS

TK20A25D,S5Q(M is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET N-CH 250V 20A TO220SIS. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-220-3 Full Pack.

Datasheet Request a Quote

In Stock: 9,089

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	250 V
Current - Continuous Drain (Id) @ 25°C	20A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	100mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	3.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	55 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2550 pF @ 100 V
FET Feature	-
Power Dissipation (Max)	45W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220SIS
Package / Case	TO-220-3 Full Pack
