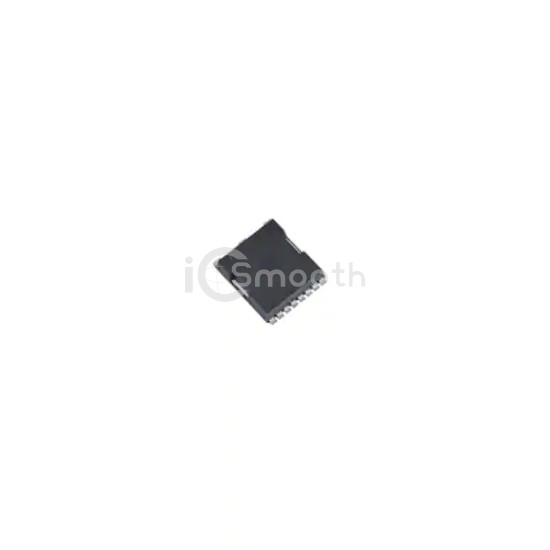

Name: TK190U65Z,RQ
Brand: Toshiba Semiconductor and Storage
SKU: TK190U65Z,RQ
Price: 3.10 USD
Availability: InStock

REF: TK190U65Z,RQ Toshiba Semiconductor and Storage

TK190U65Z,RQ

Toshiba Semiconductor and Storage

DTMOS VI TOLL PD=130W F=1MHZ

TK190U65Z,RQ is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. DTMOS VI TOLL PD=130W F=1MHZ. Key specifications: mounting type Surface Mount, operating temperature 150°C, package / case 8-PowerSFN.

Datasheet Request a Quote

In Stock: 3,313

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	650 V
Current - Continuous Drain (Id) @ 25°C	15A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	190mOhm @ 7.5A, 10V
Vgs(th) (Max) @ Id	4V @ 610µA
Gate Charge (Qg) (Max) @ Vgs	25 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	1370 pF @ 300 V
FET Feature	-
Power Dissipation (Max)	130W (Tc)
Operating Temperature	150°C
Mounting Type	Surface Mount
Supplier Device Package	TOLL
Package / Case	8-PowerSFN
