TK16E60W5,S1VX

Toshiba Semiconductor and Storage

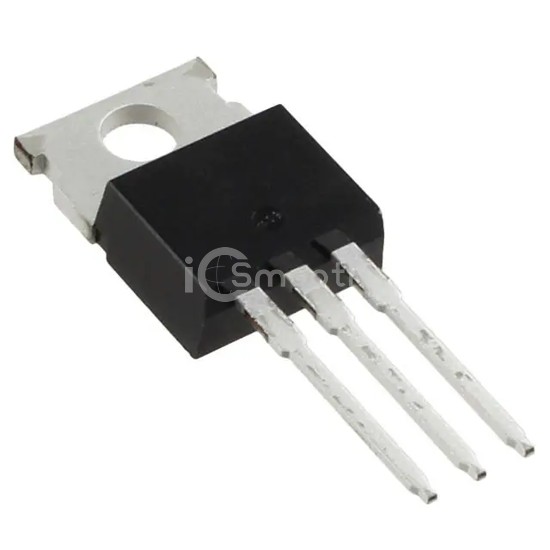

MOSFET N-CH 600V 15.8A TO220

TK16E60W5,S1VX is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET N-CH 600V 15.8A TO220. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-220-3.

Datasheet Request a Quote

In Stock: 2,386

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600 V
Current - Continuous Drain (Id) @ 25°C	15.8A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	230mOhm @ 7.9A, 10V
Vgs(th) (Max) @ Id	4.5V @ 790µA
Gate Charge (Qg) (Max) @ Vgs	43 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	1350 pF @ 300 V
FET Feature	-
Power Dissipation (Max)	130W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220
Package / Case	TO-220-3
