Name: TK16A60W,S4X
Brand: Toshiba Semiconductor and Storage
SKU: TK16A60W,S4X
Price: 2.55 USD
Availability: InStock

REF: TK16A60W,S4X Toshiba Semiconductor and Storage

TK16A60W,S4X

Toshiba Semiconductor and Storage

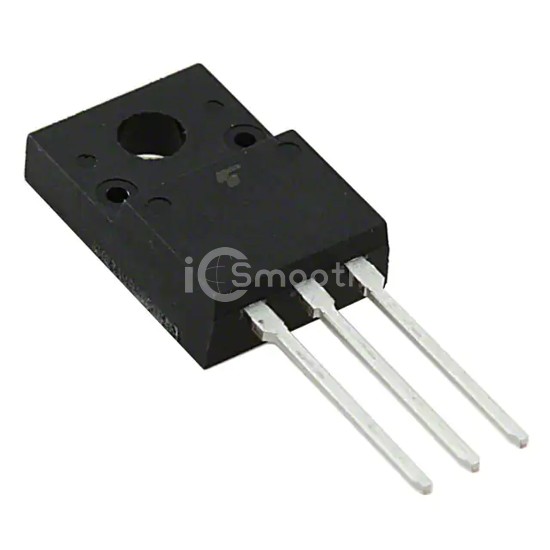

MOSFET N-CH 600V 15.8A TO220

TK16A60W,S4X is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET N-CH 600V 15.8A TO220. Key specifications: mounting type Through Hole, package / case TO-220-3 Full Pack.

Datasheet Request a Quote

In Stock: 1,686

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600 V
Current - Continuous Drain (Id) @ 25°C	15.8A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	190mOhm @ 7.9A, 10V
Vgs(th) (Max) @ Id	3.7V @ 790µA
Gate Charge (Qg) (Max) @ Vgs	40 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	1350 pF @ 300 V
FET Feature	-
Power Dissipation (Max)	40W (Tc)
Operating Temperature	-
Mounting Type	Through Hole
Supplier Device Package	TO-220SIS
Package / Case	TO-220-3 Full Pack
