Name: TK160F10N1,LXGQ
Brand: Toshiba Semiconductor and Storage
SKU: TK160F10N1,LXGQ
Price: 3.64 USD
Availability: InStock

REF: TK160F10N1,LXGQ Toshiba Semiconductor and Storage

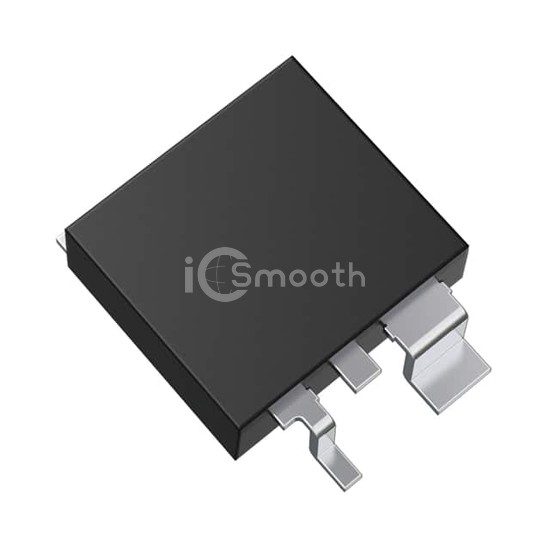

TK160F10N1,LXGQ

Toshiba Semiconductor and Storage

MOSFET N-CH 100V 160A TO220SM

TK160F10N1,LXGQ is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET N-CH 100V 160A TO220SM. Key specifications: mounting type Surface Mount, operating temperature 175°C, package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB.

Datasheet Request a Quote

In Stock: 7,588

Specifications

17 parameters

Product Status	Not For New Designs
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	160A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	2.4mOhm @ 80A, 10V
Vgs(th) (Max) @ Id	4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	121 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	8510 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	375W (Tc)
Operating Temperature	175°C
Mounting Type	Surface Mount
Supplier Device Package	TO-220SM(W)
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
