Name: TK12A80W,S4X
Brand: Toshiba Semiconductor and Storage
SKU: TK12A80W,S4X
Price: 3.26 USD
Availability: InStock

REF: TK12A80W,S4X Toshiba Semiconductor and Storage

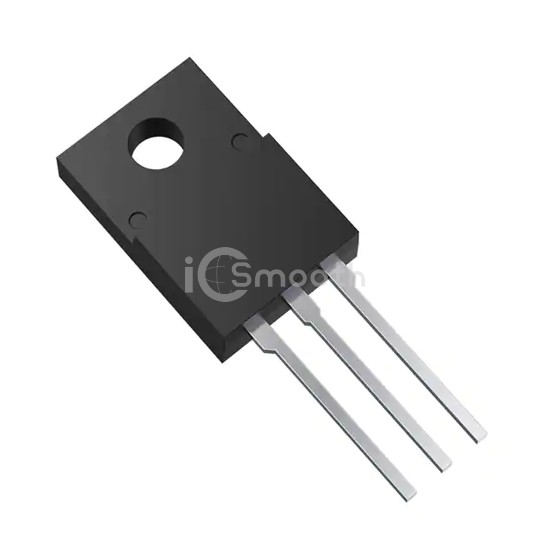

TK12A80W,S4X

Toshiba Semiconductor and Storage

MOSFET N-CH 800V 11.5A TO220SIS

TK12A80W,S4X is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET N-CH 800V 11.5A TO220SIS. Key specifications: mounting type Through Hole, operating temperature 150°C, package / case TO-220-3 Full Pack.

Datasheet Request a Quote

In Stock: 18

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	800 V
Current - Continuous Drain (Id) @ 25°C	11.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	450mOhm @ 5.8A, 10V
Vgs(th) (Max) @ Id	4V @ 570µA
Gate Charge (Qg) (Max) @ Vgs	23 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1400 pF @ 300 V
FET Feature	-
Power Dissipation (Max)	45W (Tc)
Operating Temperature	150°C
Mounting Type	Through Hole
Supplier Device Package	TO-220SIS
Package / Case	TO-220-3 Full Pack
