Name: TJ15P04M3,RQ(S
Brand: Toshiba Semiconductor and Storage
SKU: TJ15P04M3,RQ(S
Price: 0.37 USD
Availability: InStock

REF: TJ15P04M3,RQ(S Toshiba Semiconductor and Storage

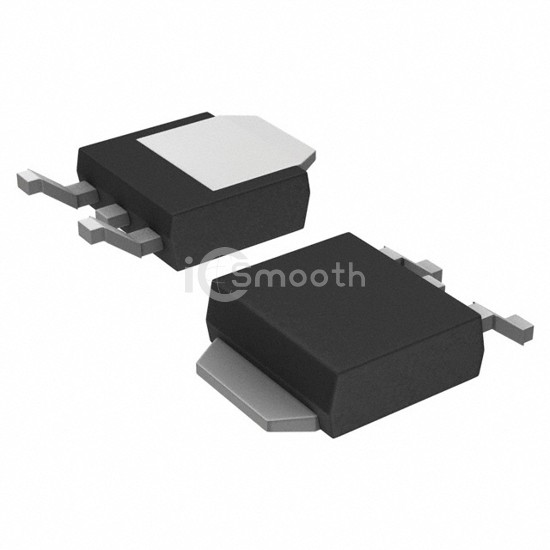

TJ15P04M3,RQ(S

Toshiba Semiconductor and Storage

MOSFET P-CH 40V 15A DPAK

TJ15P04M3,RQ(S is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET P-CH 40V 15A DPAK. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case TO-252-3, DPak (2 Leads + Tab), SC-63.

Datasheet Request a Quote

In Stock: 2,001

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	15A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	36mOhm @ 7.5A, 10V
Vgs(th) (Max) @ Id	2V @ 100µA
Gate Charge (Qg) (Max) @ Vgs	26 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1100 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	29W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	DPAK
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
