Name: TC74HC4051AF(EL,F)
Brand: Toshiba Semiconductor and Storage
SKU: TC74HC4051AF(EL,F)
Price: 0.25 USD
Availability: InStock

REF: TC74HC4051AF(EL,F) Toshiba Semiconductor and Storage

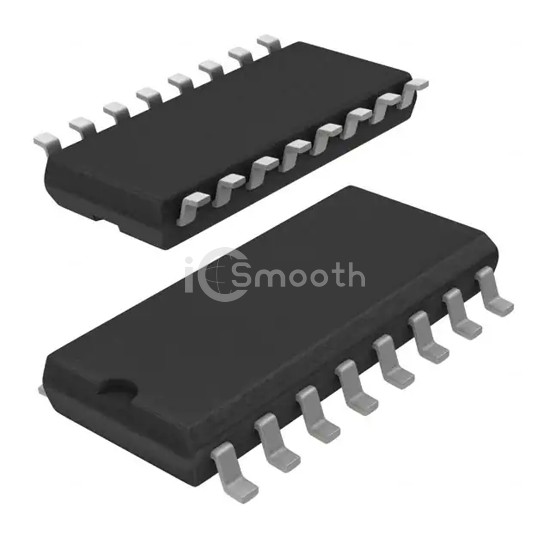

TC74HC4051AF(EL,F)

Toshiba Semiconductor and Storage

IC MUX/DEMUX 8:1 100 OHM SOP16

TC74HC4051AF(EL,F) is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Toshiba Semiconductor and Storage. IC MUX/DEMUX 8:1 100 OHM SOP16. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-SOIC (0.209", 5.30mm Width), number of circuits 1.

Datasheet Request a Quote

In Stock: 2,544

Specifications

18 parameters

Product Status	Not For New Designs
Switch Circuit	-
Multiplexer/Demultiplexer Circuit	8:1
Number of Circuits	1
On-State Resistance (Max)	100Ohm
Channel-to-Channel Matching (ΔRon)	5Ohm
Voltage - Supply, Single (V+)	2V ~ 6V
Voltage - Supply, Dual (V±)	±2V ~ 6V
Switch Time (Ton, Toff) (Max)	18ns, 29ns

-3db Bandwidth	85MHz
Charge Injection	-
Channel Capacitance (CS(off), CD(off))	2pF, 70pF
Current - Leakage (IS(off)) (Max)	100nA
Crosstalk	-50dB @ 1MHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.209", 5.30mm Width)
Supplier Device Package	16-SOP
