Name: TC4052BFELNF
Brand: Toshiba Semiconductor and Storage
SKU: TC4052BFELNF
Price: 0.52 USD
Availability: InStock

REF: TC4052BFELNF Toshiba Semiconductor and Storage

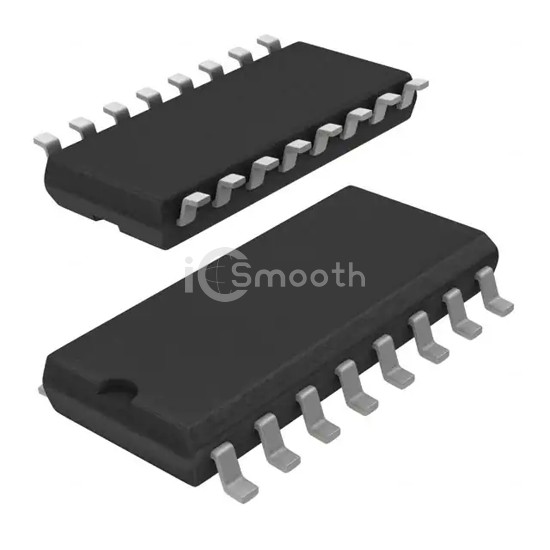

TC4052BFELNF

Toshiba Semiconductor and Storage

IC MUX/DEMUX DUAL 4:1 SOP16

TC4052BFELNF is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Toshiba Semiconductor and Storage. IC MUX/DEMUX DUAL 4:1 SOP16. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-SOIC (0.209", 5.30mm Width), number of circuits 2.

Datasheet Request a Quote

In Stock: 4,542

Specifications

18 parameters

Product Status	Not For New Designs
Switch Circuit	SP4T
Multiplexer/Demultiplexer Circuit	4:1
Number of Circuits	2
On-State Resistance (Max)	160Ohm
Channel-to-Channel Matching (ΔRon)	4Ohm
Voltage - Supply, Single (V+)	3V ~ 18V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	-

-3db Bandwidth	30MHz
Charge Injection	-
Channel Capacitance (CS(off), CD(off))	0.2pF, 5pF
Current - Leakage (IS(off)) (Max)	100nA
Crosstalk	-50dB @ 1.5MHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.209", 5.30mm Width)
Supplier Device Package	16-SOP
