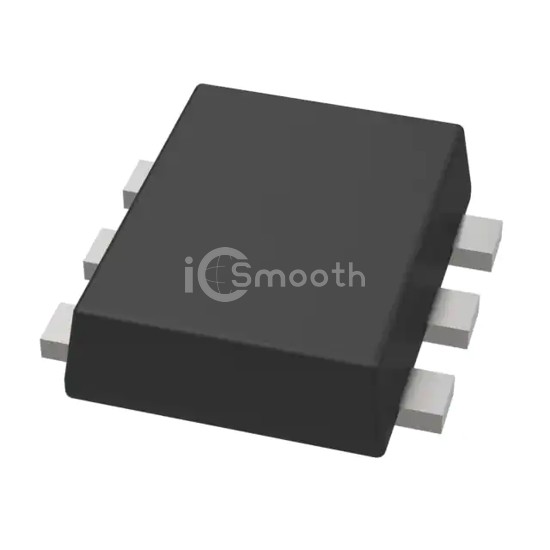

Name: SSM6K809R,LXHF
Brand: Toshiba Semiconductor and Storage
SKU: SSM6K809R,LXHF
Price: 0.72 USD
Availability: InStock

REF: SSM6K809R,LXHF Toshiba Semiconductor and Storage

SSM6K809R,LXHF

Toshiba Semiconductor and Storage

AUTO AEC-Q SS MOS N-CH LOGIC-LEV

SSM6K809R,LXHF is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. AUTO AEC-Q SS MOS N-CH LOGIC-LEV. Key specifications: mounting type Surface Mount, operating temperature 175°C, package / case 6-SMD, Flat Leads.

Datasheet Request a Quote

In Stock: 4,838

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	6A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4V, 10V
Rds On (Max) @ Id, Vgs	36mOhm @ 5A, 10V
Vgs(th) (Max) @ Id	2.5V @ 100µA
Gate Charge (Qg) (Max) @ Vgs	9.3 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	550 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	1.5W (Ta)
Operating Temperature	175°C
Mounting Type	Surface Mount
Supplier Device Package	6-TSOP-F
Package / Case	6-SMD, Flat Leads
