SSM6K781G,LF

In Stock: 500

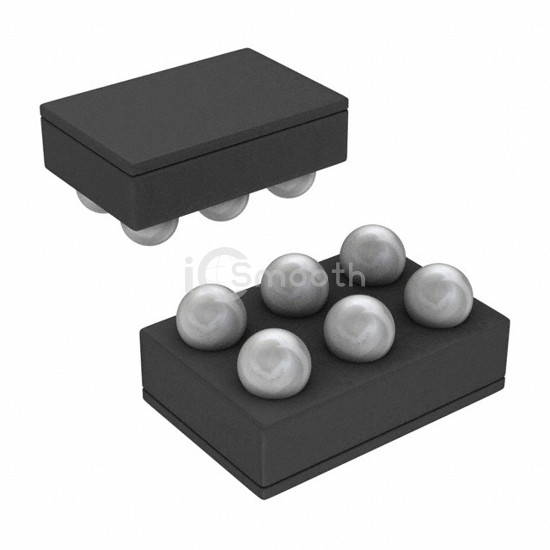

SSM6K781G,LF - Toshiba Semiconductor and Storage - Transistors - FETs, MOSFETs - Single
REF: SSM6K781G,LF Toshiba Semiconductor and Storage
SSM6K781G,LF

Toshiba Semiconductor and Storage

MOSFET N-CH 12V 7A 6WCSP6C

SSM6K781G,LF is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET N-CH 12V 7A 6WCSP6C. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 6-UFBGA, WLCSP.

Datasheet Request a Quote

In Stock: 500

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)12 V
Current - Continuous Drain (Id) @ 25°C7A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.5V, 4.5V
Rds On (Max) @ Id, Vgs18mOhm @ 1.5A, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs5.4 nC @ 4.5 V
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds600 pF @ 6 V
FET Feature-
Power Dissipation (Max)1.6W (Ta)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package6-WCSPC (1.5x1.0)
Package / Case6-UFBGA, WLCSP
