Name: SSM6K513NU,LF
Brand: Toshiba Semiconductor and Storage
SKU: SSM6K513NU,LF
Price: 0.48 USD
Availability: InStock

REF: SSM6K513NU,LF Toshiba Semiconductor and Storage

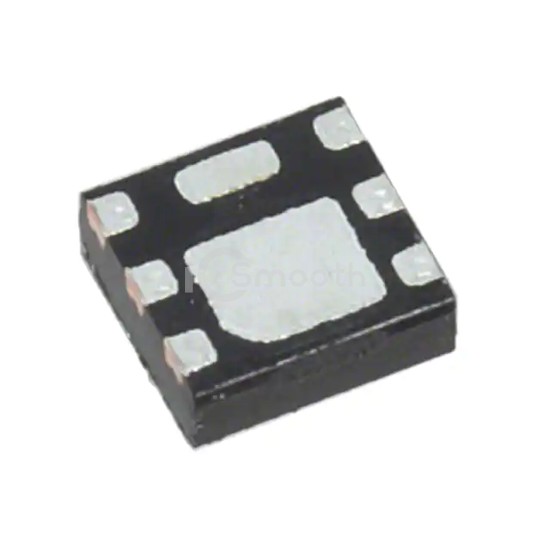

SSM6K513NU,LF

Toshiba Semiconductor and Storage

MOSFET N-CH 30V 15A 6UDFNB

SSM6K513NU,LF is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET N-CH 30V 15A 6UDFNB. Key specifications: mounting type Surface Mount, operating temperature 150°C (TA), package / case 6-WDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 109

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	15A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	8.9mOhm @ 4A, 10V
Vgs(th) (Max) @ Id	2.1V @ 100µA
Gate Charge (Qg) (Max) @ Vgs	7.5 nC @ 4.5 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1130 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	1.25W (Ta)
Operating Temperature	150°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	6-UDFNB (2x2)
Package / Case	6-WDFN Exposed Pad
