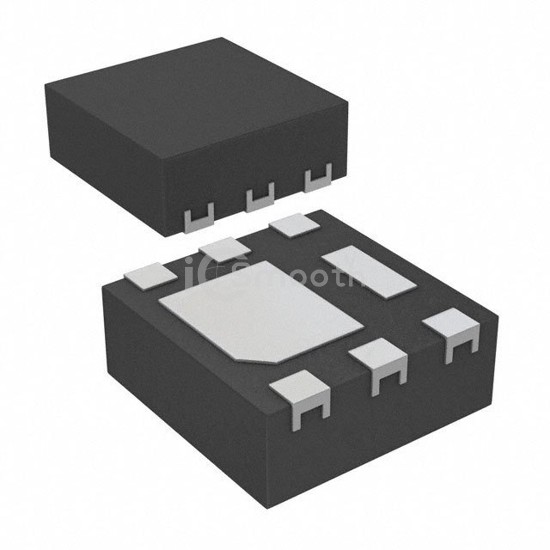

SSM6K361NU,LF

Toshiba Semiconductor and Storage

MOSFET N-CH 100V 3.5A 6UDFNB

SSM6K361NU,LF is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET N-CH 100V 3.5A 6UDFNB. Key specifications: mounting type Surface Mount, operating temperature 150°C, package / case 6-WDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 5,003

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	3.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	69mOhm @ 2A, 10V
Vgs(th) (Max) @ Id	2.5V @ 100µA
Gate Charge (Qg) (Max) @ Vgs	3.2 nC @ 4.5 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	430 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	1.25W (Ta)
Operating Temperature	150°C
Mounting Type	Surface Mount
Supplier Device Package	6-UDFNB (2x2)
Package / Case	6-WDFN Exposed Pad
