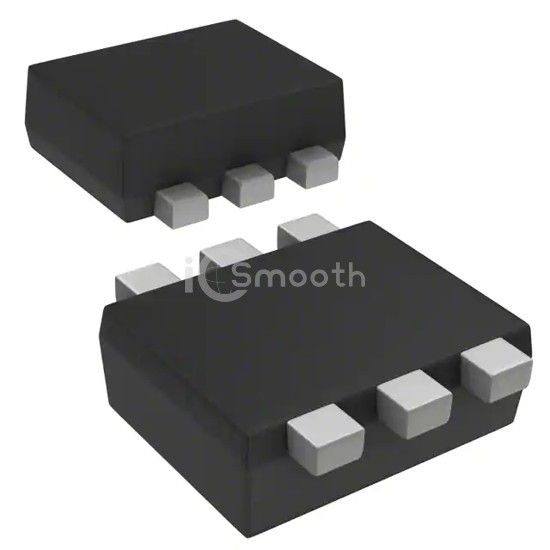

Name: SSM6K202FE,LF
Brand: Toshiba Semiconductor and Storage
SKU: SSM6K202FE,LF
Price: 0.48 USD
Availability: InStock

REF: SSM6K202FE,LF Toshiba Semiconductor and Storage

SSM6K202FE,LF

Toshiba Semiconductor and Storage

MOSFET N-CH 30V 2.3A ES6

SSM6K202FE,LF is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET N-CH 30V 2.3A ES6. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case SOT-563, SOT-666.

Datasheet Request a Quote

In Stock: 1,144

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	2.3A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4V
Rds On (Max) @ Id, Vgs	85mOhm @ 1.5A, 4V
Vgs(th) (Max) @ Id	1V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	-

Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	270 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	500mW (Ta)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	ES6
Package / Case	SOT-563, SOT-666
