Name: SSM6J808R,LXHF
Brand: Toshiba Semiconductor and Storage
SKU: SSM6J808R,LXHF
Price: 0.80 USD
Availability: InStock

REF: SSM6J808R,LXHF Toshiba Semiconductor and Storage

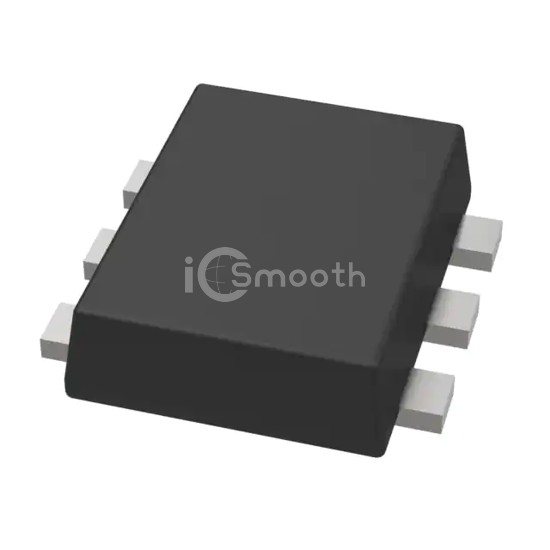

SSM6J808R,LXHF

Toshiba Semiconductor and Storage

AUTO AEC-Q SS MOS P-CH LOGIC-LEV

SSM6J808R,LXHF is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. AUTO AEC-Q SS MOS P-CH LOGIC-LEV. Key specifications: mounting type Surface Mount, operating temperature 150°C, package / case 6-SMD, Flat Leads.

Datasheet Request a Quote

In Stock: 5,935

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	7A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4V, 10V
Rds On (Max) @ Id, Vgs	35mOhm @ 2.5A, 10V
Vgs(th) (Max) @ Id	2V @ 100µA
Gate Charge (Qg) (Max) @ Vgs	24.2 nC @ 10 V

Vgs (Max)	+10V, -20V
Input Capacitance (Ciss) (Max) @ Vds	1020 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	1.5W (Ta)
Operating Temperature	150°C
Mounting Type	Surface Mount
Supplier Device Package	6-TSOP-F
Package / Case	6-SMD, Flat Leads
