SSM6J771G,LF

In Stock: 2

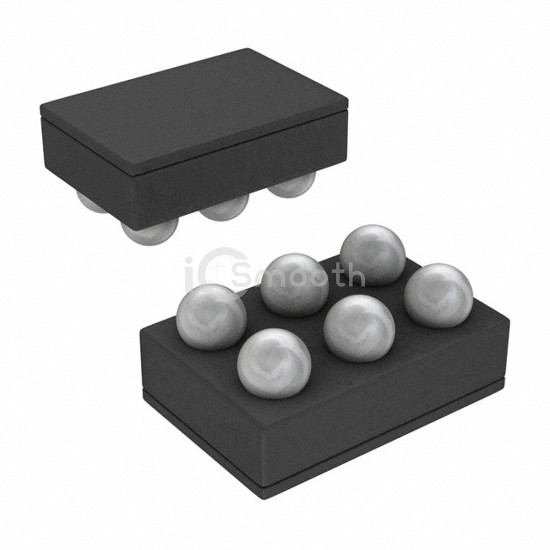

SSM6J771G,LF - Toshiba Semiconductor and Storage - Transistors - FETs, MOSFETs - Single
REF: SSM6J771G,LF Toshiba Semiconductor and Storage
SSM6J771G,LF

Toshiba Semiconductor and Storage

MOSFET P-CH 20V 5A 6WCSP

SSM6J771G,LF is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET P-CH 20V 5A 6WCSP. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 6-UFBGA, WLCSP.

Datasheet Request a Quote

In Stock: 2

Specifications

17 parameters
Product StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)2.5V, 8.5V
Rds On (Max) @ Id, Vgs31mOhm @ 3A, 8.5V
Vgs(th) (Max) @ Id1.2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs9.8 nC @ 4.5 V
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds870 pF @ 10 V
FET Feature-
Power Dissipation (Max)1.2W (Ta)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package-
Package / Case6-UFBGA, WLCSP
