SSM6J53FE(TE85L,F)

In Stock: 6,450

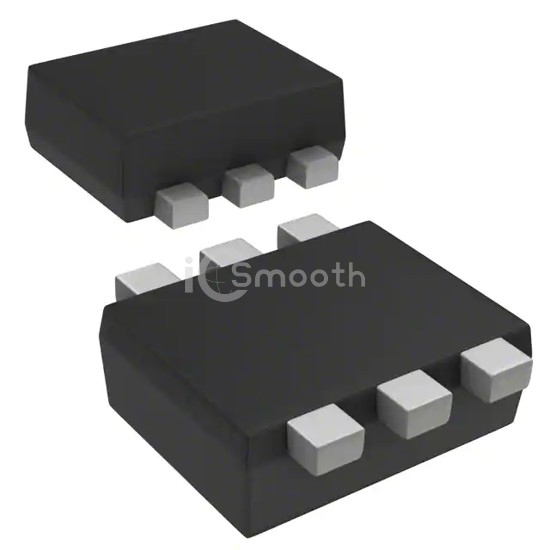

SSM6J53FE(TE85L,F) - Toshiba Semiconductor and Storage - Transistors - FETs, MOSFETs - Single
REF: SSM6J53FE(TE85L,F) Toshiba Semiconductor and Storage
SSM6J53FE(TE85L,F)

Toshiba Semiconductor and Storage

MOSFET P-CH 20V 1.8A ES6

SSM6J53FE(TE85L,F) is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET P-CH 20V 1.8A ES6. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case SOT-563, SOT-666.

Datasheet Request a Quote

In Stock: 6,450

Specifications

17 parameters
Product StatusObsolete
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C1.8A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.5V, 2.5V
Rds On (Max) @ Id, Vgs136mOhm @ 1A, 2.5V
Vgs(th) (Max) @ Id1V @ 1mA
Gate Charge (Qg) (Max) @ Vgs10.6 nC @ 4 V
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds568 pF @ 10 V
FET Feature-
Power Dissipation (Max)500mW (Ta)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageES6
Package / CaseSOT-563, SOT-666
