Name: SSM6J511NU,LF
Brand: Toshiba Semiconductor and Storage
SKU: SSM6J511NU,LF
Price: 0.52 USD
Availability: InStock

REF: SSM6J511NU,LF Toshiba Semiconductor and Storage

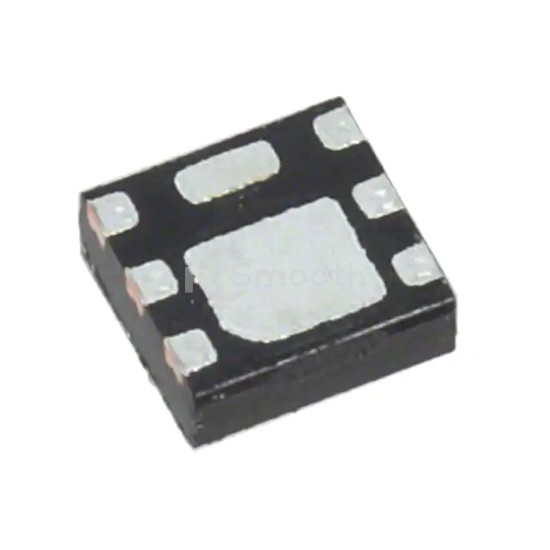

SSM6J511NU,LF

Toshiba Semiconductor and Storage

MOSFET P-CH 12V 14A 6UDFNB

SSM6J511NU,LF is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET P-CH 12V 14A 6UDFNB. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-WDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 6,249

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	12 V
Current - Continuous Drain (Id) @ 25°C	14A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	-
Rds On (Max) @ Id, Vgs	9.1mOhm @ 4A, 8V
Vgs(th) (Max) @ Id	1V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	47 nC @ 4.5 V

Vgs (Max)	-
Input Capacitance (Ciss) (Max) @ Vds	3350 pF @ 6 V
FET Feature	-
Power Dissipation (Max)	-
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-UDFNB (2x2)
Package / Case	6-WDFN Exposed Pad
