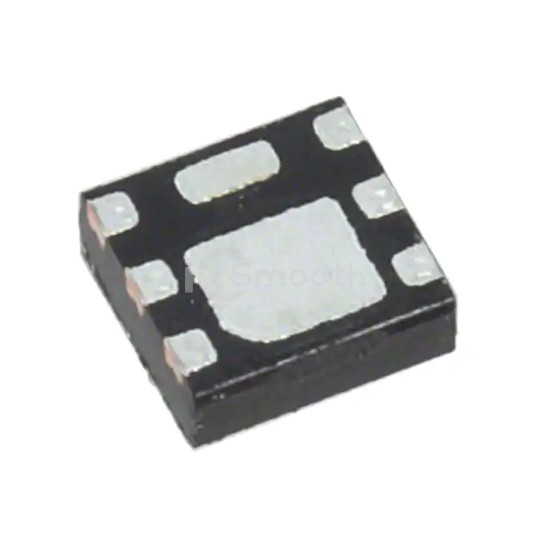

Name: SSM6J503NU,LF
Brand: Toshiba Semiconductor and Storage
SKU: SSM6J503NU,LF
Price: 0.14 USD
Availability: InStock

REF: SSM6J503NU,LF Toshiba Semiconductor and Storage

SSM6J503NU,LF

Toshiba Semiconductor and Storage

MOSFET P-CH 20V 6A 6UDFNB

SSM6J503NU,LF is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET P-CH 20V 6A 6UDFNB. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 6-WDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 9,184

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	6A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Rds On (Max) @ Id, Vgs	32.4mOhm @ 3A, 4.5V
Vgs(th) (Max) @ Id	1V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	12.8 nC @ 10 V

Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	840 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	1W (Ta)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-UDFNB (2x2)
Package / Case	6-WDFN Exposed Pad
