Name: SSM6J409TU(TE85L,F
Brand: Toshiba Semiconductor and Storage
SKU: SSM6J409TU(TE85L,F
Availability: InStock

REF: SSM6J409TU(TE85L,F Toshiba Semiconductor and Storage

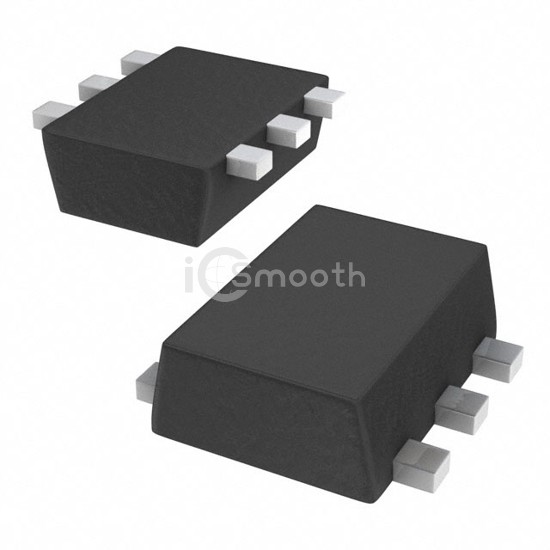

SSM6J409TU(TE85L,F

Toshiba Semiconductor and Storage

MOSFET P-CH 20V 9.5A UF6

SSM6J409TU(TE85L,F is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET P-CH 20V 9.5A UF6. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 6-SMD, Flat Leads.

Datasheet Request a Quote

In Stock: 8,018

Specifications

17 parameters

Product Status	Obsolete
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	9.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Rds On (Max) @ Id, Vgs	22.1mOhm @ 3A, 4.5V
Vgs(th) (Max) @ Id	1V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	15 nC @ 4.5 V

Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	1100 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	1W (Ta)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	UF6
Package / Case	6-SMD, Flat Leads
