Name: SSM6H19NU,LF
Brand: Toshiba Semiconductor and Storage
SKU: SSM6H19NU,LF
Price: 0.39 USD
Availability: InStock

REF: SSM6H19NU,LF Toshiba Semiconductor and Storage

SSM6H19NU,LF

Toshiba Semiconductor and Storage

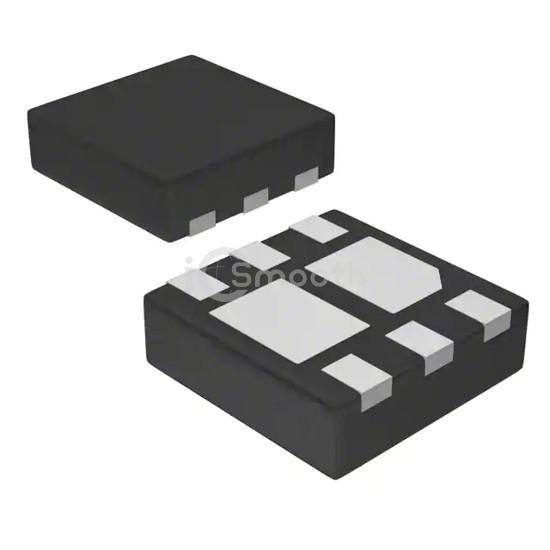

MOSFET N-CH 40V 2A 6UDFN

SSM6H19NU,LF is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET N-CH 40V 2A 6UDFN. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 6-UDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 54,380

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	2A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 8V
Rds On (Max) @ Id, Vgs	185mOhm @ 1A, 8V
Vgs(th) (Max) @ Id	1.2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	2.2 nC @ 4.2 V

Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	130 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	1W (Ta)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-UDFN (2x2)
Package / Case	6-UDFN Exposed Pad
