Name: SSM5H90ATU,LF
Brand: Toshiba Semiconductor and Storage
SKU: SSM5H90ATU,LF
Price: 0.11 USD
Availability: InStock

REF: SSM5H90ATU,LF Toshiba Semiconductor and Storage

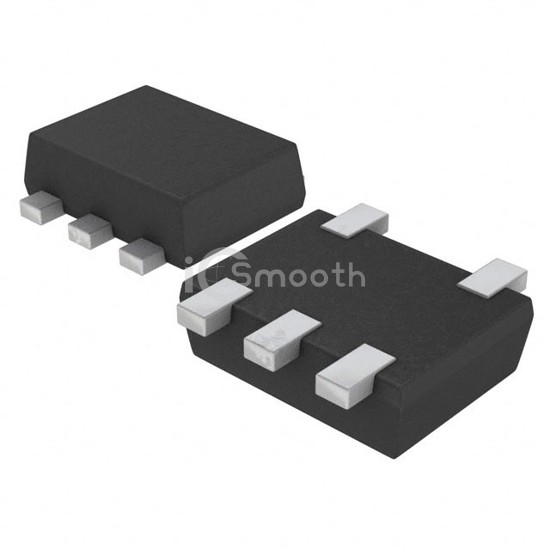

SSM5H90ATU,LF

Toshiba Semiconductor and Storage

MOSFET N-CH 20V 2.4A UFV

SSM5H90ATU,LF is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET N-CH 20V 2.4A UFV. Key specifications: mounting type Surface Mount, operating temperature 150°C, package / case 5-SMD, Flat Leads.

Datasheet Request a Quote

In Stock: 5,475

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	2.4A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4V
Rds On (Max) @ Id, Vgs	65mOhm @ 1.5A, 4V
Vgs(th) (Max) @ Id	1.2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	2.2 nC @ 4 V

Vgs (Max)	±10V
Input Capacitance (Ciss) (Max) @ Vds	200 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	500mW (Ta)
Operating Temperature	150°C
Mounting Type	Surface Mount
Supplier Device Package	UFV
Package / Case	5-SMD, Flat Leads
