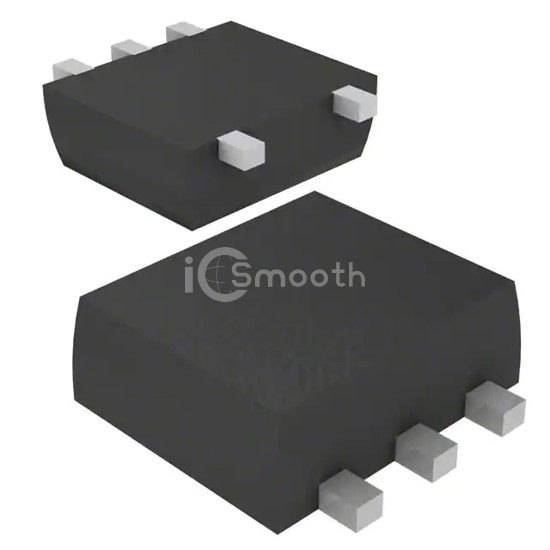

Name: SSM5H16TU,LF
Brand: Toshiba Semiconductor and Storage
SKU: SSM5H16TU,LF
Price: 0.50 USD
Availability: InStock

REF: SSM5H16TU,LF Toshiba Semiconductor and Storage

SSM5H16TU,LF

Toshiba Semiconductor and Storage

MOSFET N-CH 30V 1.9A UFV

SSM5H16TU,LF is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET N-CH 30V 1.9A UFV. Key specifications: mounting type Surface Mount, operating temperature 150°C, package / case 6-SMD (5 Leads), Flat Lead.

Datasheet Request a Quote

In Stock: 5,400

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	1.9A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4V
Rds On (Max) @ Id, Vgs	133mOhm @ 1A, 4V
Vgs(th) (Max) @ Id	1V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	1.9 nC @ 4 V

Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	123 pF @ 15 V
FET Feature	Schottky Diode (Isolated)
Power Dissipation (Max)	500mW (Ta)
Operating Temperature	150°C
Mounting Type	Surface Mount
Supplier Device Package	UFV
Package / Case	6-SMD (5 Leads), Flat Lead
