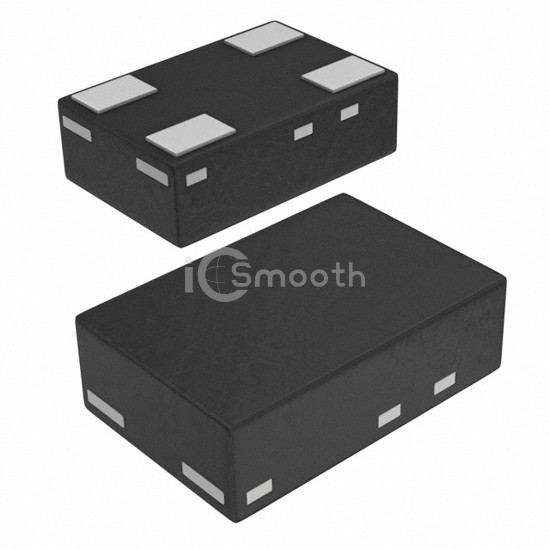

Name: SSM4K27CTTPL3
Brand: Toshiba Semiconductor and Storage
SKU: SSM4K27CTTPL3
Availability: InStock

REF: SSM4K27CTTPL3 Toshiba Semiconductor and Storage

SSM4K27CTTPL3

MOSFET N-CH 20V 500MA CST4

SSM4K27CTTPL3 is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET N-CH 20V 500MA CST4. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 4-SMD, No Lead.

Datasheet Request a Quote

In Stock: 7,658

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	500mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4V
Rds On (Max) @ Id, Vgs	205mOhm @ 250mA, 4V
Vgs(th) (Max) @ Id	1.1V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	-

Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	174 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	400mW (Ta)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	CST4 (1.2x0.8)
Package / Case	4-SMD, No Lead
