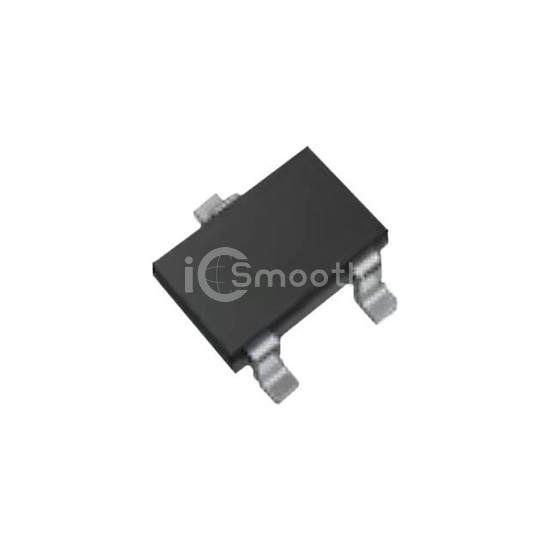

Name: SSM3K7002KFU,LXH
Brand: Toshiba Semiconductor and Storage
SKU: SSM3K7002KFU,LXH
Price: 0.41 USD
Availability: InStock

REF: SSM3K7002KFU,LXH Toshiba Semiconductor and Storage

SSM3K7002KFU,LXH

Toshiba Semiconductor and Storage

SMOS LOW RON NCH IO: 0.4A VDSS:

SSM3K7002KFU,LXH is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. SMOS LOW RON NCH IO: 0.4A VDSS:. Key specifications: mounting type Surface Mount, operating temperature 150°C, package / case SC-70, SOT-323.

Datasheet Request a Quote

In Stock: 2,688

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	400mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	1.5Ohm @ 100mA, 10V
Vgs(th) (Max) @ Id	2.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	0.6 nC @ 4.5 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	40 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	150mW (Ta)
Operating Temperature	150°C
Mounting Type	Surface Mount
Supplier Device Package	USM
Package / Case	SC-70, SOT-323
