SSM3K337R,LF

In Stock: 11,136

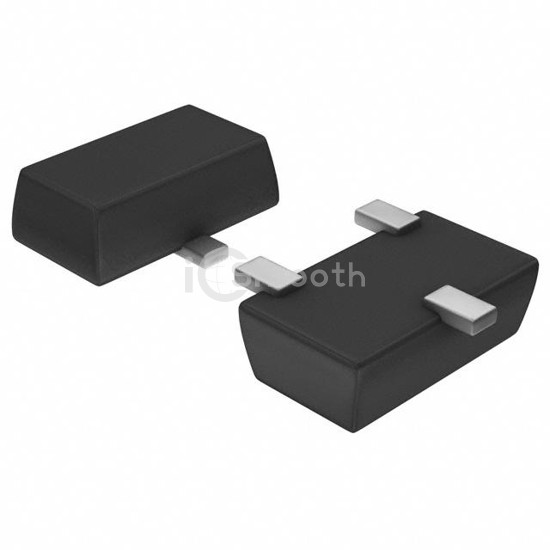

SSM3K337R,LF - Toshiba Semiconductor and Storage - Transistors - FETs, MOSFETs - Single
REF: SSM3K337R,LF Toshiba Semiconductor and Storage
SSM3K337R,LF

Toshiba Semiconductor and Storage

MOSFET N-CH 38V 2A SOT23F

SSM3K337R,LF is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET N-CH 38V 2A SOT23F. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case SOT-23-3 Flat Leads.

Datasheet Request a Quote

In Stock: 11,136

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)38 V
Current - Continuous Drain (Id) @ 25°C2A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4V, 10V
Rds On (Max) @ Id, Vgs150mOhm @ 2A, 10V
Vgs(th) (Max) @ Id1.7V @ 1mA
Gate Charge (Qg) (Max) @ Vgs3 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds120 pF @ 10 V
FET Feature-
Power Dissipation (Max)1W (Ta)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSOT-23F
Package / CaseSOT-23-3 Flat Leads
