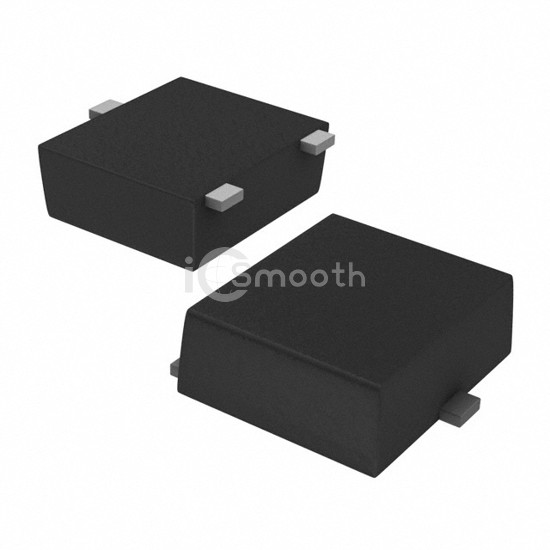

Name: SSM3K106TU(TE85L)
Brand: Toshiba Semiconductor and Storage
SKU: SSM3K106TU(TE85L)
Availability: InStock

REF: SSM3K106TU(TE85L) Toshiba Semiconductor and Storage

SSM3K106TU(TE85L)

Toshiba Semiconductor and Storage

MOSFET N-CH 20V 1.2A UFM

SSM3K106TU(TE85L) is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET N-CH 20V 1.2A UFM. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 3-SMD, Flat Leads.

Datasheet Request a Quote

In Stock: 7,721

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	1.2A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4V, 10V
Rds On (Max) @ Id, Vgs	310mOhm @ 600mA, 10V
Vgs(th) (Max) @ Id	2.3V @ 100µA
Gate Charge (Qg) (Max) @ Vgs	-

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	36 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	500mW (Ta)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	UFM
Package / Case	3-SMD, Flat Leads
