Name: SSM3J371R,LXHF
Brand: Toshiba Semiconductor and Storage
SKU: SSM3J371R,LXHF
Price: 0.41 USD
Availability: InStock

REF: SSM3J371R,LXHF Toshiba Semiconductor and Storage

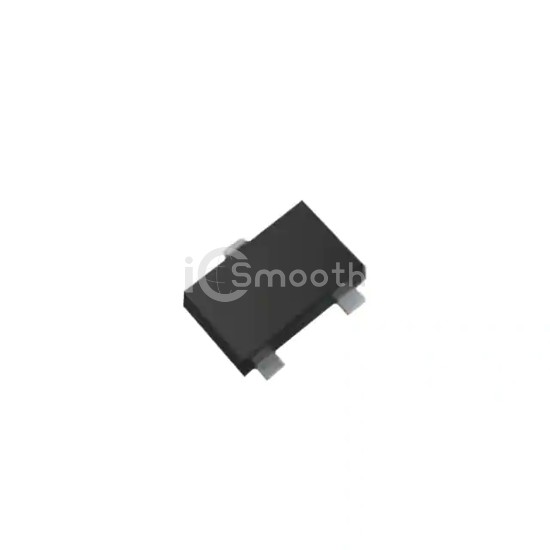

SSM3J371R,LXHF

Toshiba Semiconductor and Storage

SMOS P-CH VDSS:-20V VGSS:-8/+6V

SSM3J371R,LXHF is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. SMOS P-CH VDSS:-20V VGSS:-8/+6V. Key specifications: mounting type Surface Mount, operating temperature 150°C, package / case SOT-23-3 Flat Leads.

Datasheet Request a Quote

In Stock: 1,381

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	4A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Rds On (Max) @ Id, Vgs	55mOhm @ 3A, 4.5V
Vgs(th) (Max) @ Id	1V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	10.4 nC @ 4.5 V

Vgs (Max)	+6V, -8V
Input Capacitance (Ciss) (Max) @ Vds	630 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	1W (Ta)
Operating Temperature	150°C
Mounting Type	Surface Mount
Supplier Device Package	SOT-23F
Package / Case	SOT-23-3 Flat Leads
