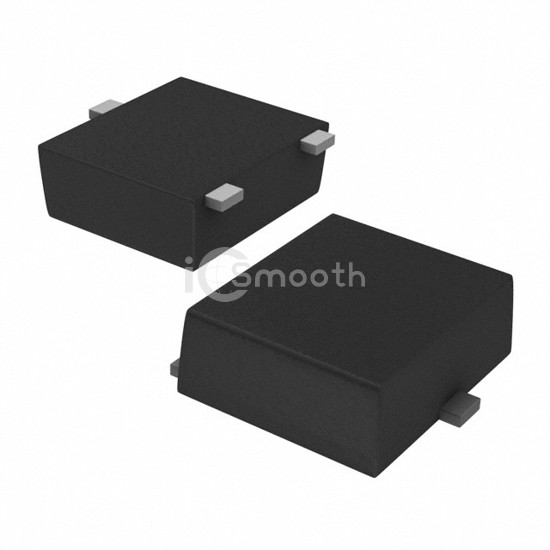

Name: SSM3J36TU,LF
Brand: Toshiba Semiconductor and Storage
SKU: SSM3J36TU,LF
Price: 0.39 USD
Availability: InStock

REF: SSM3J36TU,LF Toshiba Semiconductor and Storage

SSM3J36TU,LF

Toshiba Semiconductor and Storage

MOSFET P-CH 20V 330MA UFM

SSM3J36TU,LF is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET P-CH 20V 330MA UFM. Key specifications: mounting type Surface Mount, operating temperature 150°C, package / case 3-SMD, Flat Leads.

Datasheet Request a Quote

In Stock: 2,593

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	330mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Rds On (Max) @ Id, Vgs	1.31Ohm @ 100mA, 4.5V
Vgs(th) (Max) @ Id	1V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	1.2 nC @ 4 V

Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	43 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	800mW (Ta)
Operating Temperature	150°C
Mounting Type	Surface Mount
Supplier Device Package	UFM
Package / Case	3-SMD, Flat Leads
