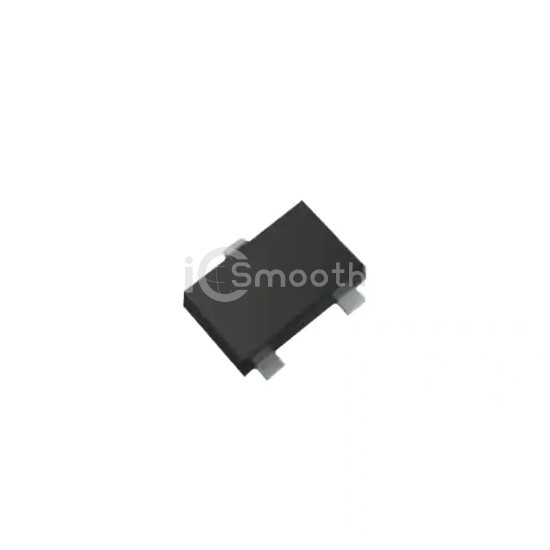

Name: SSM3J356R,LXHF
Brand: Toshiba Semiconductor and Storage
SKU: SSM3J356R,LXHF
Price: 0.51 USD
Availability: InStock

REF: SSM3J356R,LXHF Toshiba Semiconductor and Storage

SSM3J356R,LXHF

Toshiba Semiconductor and Storage

AECQ MOSFET PCH -60V -2A SOT23F

SSM3J356R,LXHF is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. AECQ MOSFET PCH -60V -2A SOT23F. Key specifications: mounting type Surface Mount, operating temperature 150°C, package / case SOT-23-3 Flat Leads.

Datasheet Request a Quote

In Stock: 3,216

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	2A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4V, 10V
Rds On (Max) @ Id, Vgs	300mOhm @ 1A, 10V
Vgs(th) (Max) @ Id	2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	8.3 nC @ 10 V

Vgs (Max)	+10V, -20V
Input Capacitance (Ciss) (Max) @ Vds	330 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	1W (Ta)
Operating Temperature	150°C
Mounting Type	Surface Mount
Supplier Device Package	SOT-23F
Package / Case	SOT-23-3 Flat Leads
