SSM3J144TU,LF

In Stock: 7,974

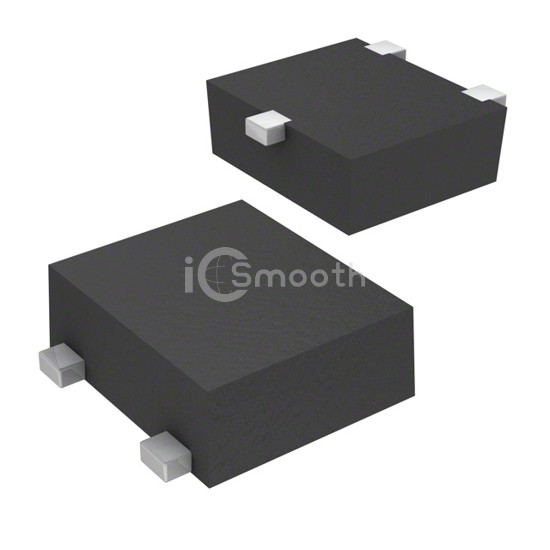

SSM3J144TU,LF - Toshiba Semiconductor and Storage - Transistors - FETs, MOSFETs - Single
REF: SSM3J144TU,LF Toshiba Semiconductor and Storage
SSM3J144TU,LF

Toshiba Semiconductor and Storage

MOSFET P-CH 20V 3.2A UFM

SSM3J144TU,LF is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET P-CH 20V 3.2A UFM. Key specifications: mounting type Surface Mount, operating temperature 150°C, package / case 3-SMD, Flat Lead.

Datasheet Request a Quote

In Stock: 7,974

Specifications

17 parameters
Product StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C3.2A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.5V, 4.5V
Rds On (Max) @ Id, Vgs93mOhm @ 1.5A, 4.5V
Vgs(th) (Max) @ Id1V @ 1mA
Gate Charge (Qg) (Max) @ Vgs4.7 nC @ 4.5 V
Vgs (Max)+6V, -8V
Input Capacitance (Ciss) (Max) @ Vds290 pF @ 10 V
FET Feature-
Power Dissipation (Max)500mW (Ta)
Operating Temperature150°C
Mounting TypeSurface Mount
Supplier Device PackageUFM
Package / Case3-SMD, Flat Lead
