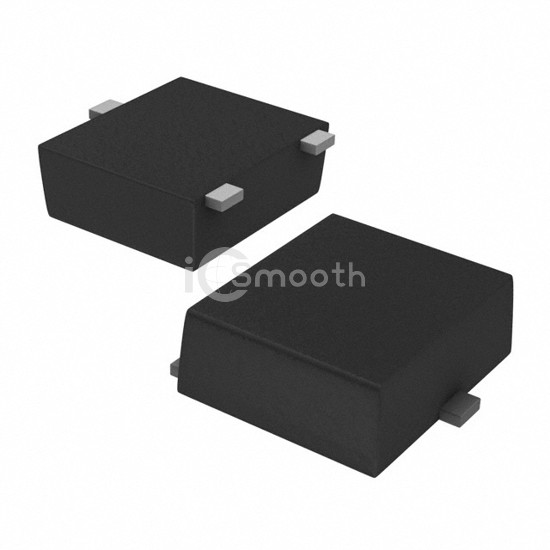

Name: SSM3J120TU,LF
Brand: Toshiba Semiconductor and Storage
SKU: SSM3J120TU,LF
Availability: InStock

REF: SSM3J120TU,LF Toshiba Semiconductor and Storage

SSM3J120TU,LF

MOSFET P-CH 20V 4A UFM

SSM3J120TU,LF is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET P-CH 20V 4A UFM. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 3-SMD, Flat Leads.

Datasheet Request a Quote

In Stock: 6,452

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	4A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4V
Rds On (Max) @ Id, Vgs	38mOhm @ 3A, 4V
Vgs(th) (Max) @ Id	1V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	22.3 nC @ 4 V

Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	1484 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	500mW (Ta)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	UFM
Package / Case	3-SMD, Flat Leads
