SSM3J114TU(T5L,T)

In Stock: 3,676

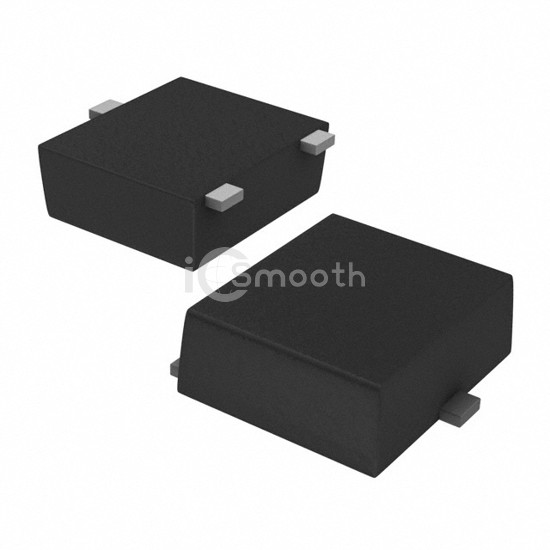

SSM3J114TU(T5L,T) - Toshiba Semiconductor and Storage - Transistors - FETs, MOSFETs - Single
REF: SSM3J114TU(T5L,T) Toshiba Semiconductor and Storage
SSM3J114TU(T5L,T)

Toshiba Semiconductor and Storage

MOSFET P-CH 20V 1.8A UFM

SSM3J114TU(T5L,T) is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET P-CH 20V 1.8A UFM. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 3-SMD, Flat Leads.

Datasheet Request a Quote

In Stock: 3,676

Specifications

17 parameters
Product StatusObsolete
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C1.8A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.5V, 4V
Rds On (Max) @ Id, Vgs149mOhm @ 600mA, 4V
Vgs(th) (Max) @ Id1V @ 1mA
Gate Charge (Qg) (Max) @ Vgs7.7 nC @ 4 V
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds331 pF @ 10 V
FET Feature-
Power Dissipation (Max)500mW (Ta)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageUFM
Package / Case3-SMD, Flat Leads
