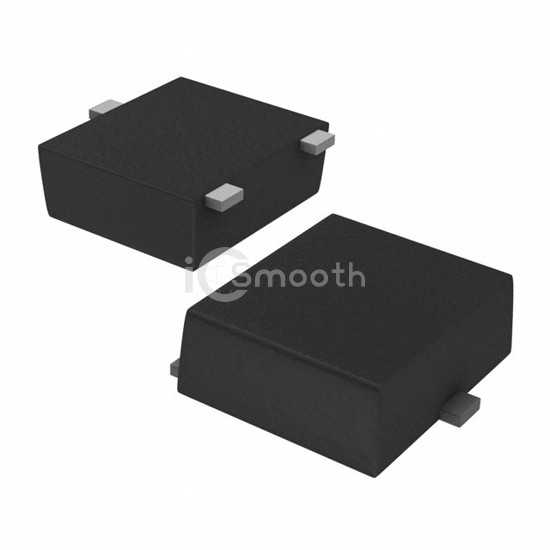

Name: SSM3J112TU,LF
Brand: Toshiba Semiconductor and Storage
SKU: SSM3J112TU,LF
Price: 0.10 USD
Availability: InStock

REF: SSM3J112TU,LF Toshiba Semiconductor and Storage

SSM3J112TU,LF

Toshiba Semiconductor and Storage

MOSFET P-CH 30V 1.1A UFM

SSM3J112TU,LF is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET P-CH 30V 1.1A UFM. Key specifications: mounting type Surface Mount, operating temperature 150°C, package / case 3-SMD, Flat Leads.

Datasheet Request a Quote

In Stock: 3,572

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	1.1A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4V, 10V
Rds On (Max) @ Id, Vgs	390mOhm @ 500mA, 10V
Vgs(th) (Max) @ Id	1.8V @ 100µA
Gate Charge (Qg) (Max) @ Vgs	-

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	86 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	800mW (Ta)
Operating Temperature	150°C
Mounting Type	Surface Mount
Supplier Device Package	UFM
Package / Case	3-SMD, Flat Leads
