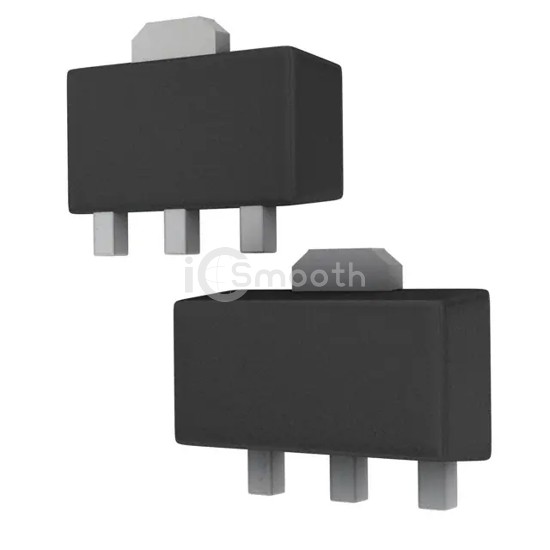

Name: 2SK2963(TE12L,F)
Brand: Toshiba Semiconductor and Storage
SKU: 2SK2963(TE12L,F)
Availability: InStock

REF: 2SK2963(TE12L,F) Toshiba Semiconductor and Storage

2SK2963(TE12L,F)

Toshiba Semiconductor and Storage

MOSFET N-CH 100V 1A PW-MINI

2SK2963(TE12L,F) is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET N-CH 100V 1A PW-MINI. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case TO-243AA.

Datasheet Request a Quote

In Stock: 3,483

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	1A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4V, 10V
Rds On (Max) @ Id, Vgs	700mOhm @ 500mA, 10V
Vgs(th) (Max) @ Id	2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	6.3 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	140 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	500mW (Ta)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PW-MINI
Package / Case	TO-243AA
