Name: TS5MP645YFPR
Brand: Texas Instruments
SKU: TS5MP645YFPR
Price: 2.25 USD
Availability: InStock

REF: TS5MP645YFPR Texas Instruments

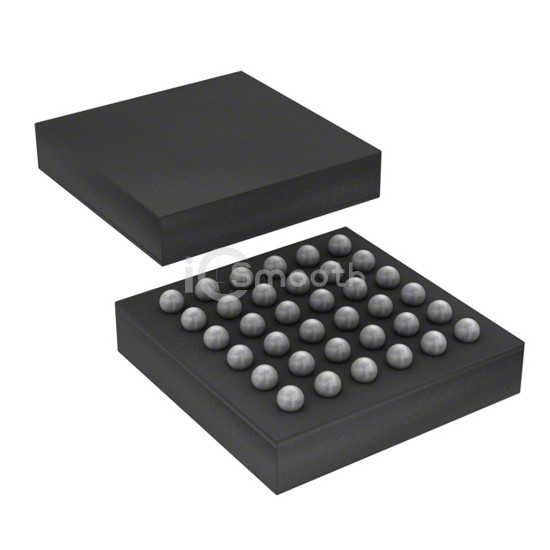

TS5MP645YFPR

IC SWITCH SPDT 10 CIRC 36DSBGA

TS5MP645YFPR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Texas Instruments. IC SWITCH SPDT 10 CIRC 36DSBGA. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 36-XFBGA, DSBGA, number of circuits 10.

Datasheet Request a Quote

In Stock: 6,626

Tiered Pricing USD

1+ $2.2500 —

10+ $1.6630 -26%

25+ $1.5176 -33%

100+ $1.3576 -40%

250+ $1.2812 -43%

500+ $1.2352 -45%

1,000+ $1.1973 -47% BEST

Specifications

18 parameters

Product Status	Not For New Designs
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	10
On-State Resistance (Max)	6.5Ohm
Channel-to-Channel Matching (ΔRon)	100mOhm
Voltage - Supply, Single (V+)	1.65V ~ 5.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	-

-3db Bandwidth	1.5GHz
Charge Injection	-
Channel Capacitance (CS(off), CD(off))	1.5pF
Current - Leakage (IS(off)) (Max)	500nA
Crosstalk	-40dB @ 1.25GHz
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	36-XFBGA, DSBGA
Supplier Device Package	36-DSBGA
