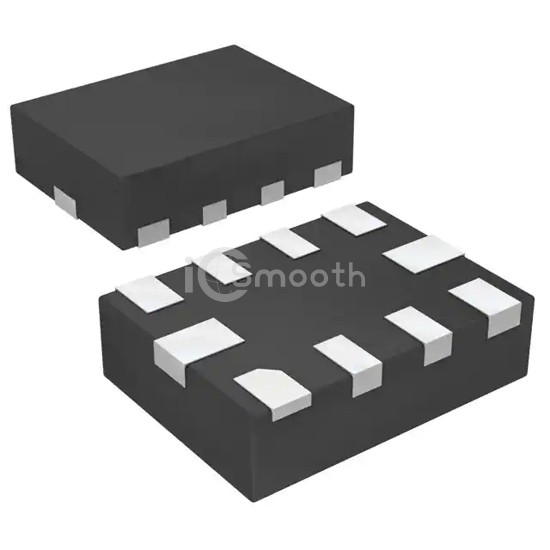

Name: TS5A23159RSERG4
Brand: Texas Instruments
SKU: TS5A23159RSERG4
Price: 0.46 USD
Availability: InStock

REF: TS5A23159RSERG4 Texas Instruments

TS5A23159RSERG4

Texas Instruments

IC SWITCH DUAL SPDT 10UQFN

TS5A23159RSERG4 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Texas Instruments. IC SWITCH DUAL SPDT 10UQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-UFQFN, number of circuits 2.

Datasheet Request a Quote

In Stock: 6,296

Tiered Pricing USD

3,000+ $0.4600 —

6,000+ $0.4492 -2%

9,000+ $0.4438 -4%

15,000+ $0.4378 -5%

21,000+ $0.4343 -6% BEST

Specifications

18 parameters

Product Status	Discontinued at Digi-Key
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	2
On-State Resistance (Max)	900mOhm
Channel-to-Channel Matching (ΔRon)	50mOhm
Voltage - Supply, Single (V+)	1.65V ~ 5.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	13ns, 8ns

-3db Bandwidth	100MHz
Charge Injection	-7pC
Channel Capacitance (CS(off), CD(off))	18pF
Current - Leakage (IS(off)) (Max)	20nA
Crosstalk	-64dB @ 1MHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	10-UFQFN
Supplier Device Package	10-UQFN (2.0x1.5)
