Name: TS5A23157RSER
Brand: Texas Instruments
SKU: TS5A23157RSER
Price: 0.52 USD
Availability: InStock

REF: TS5A23157RSER Texas Instruments

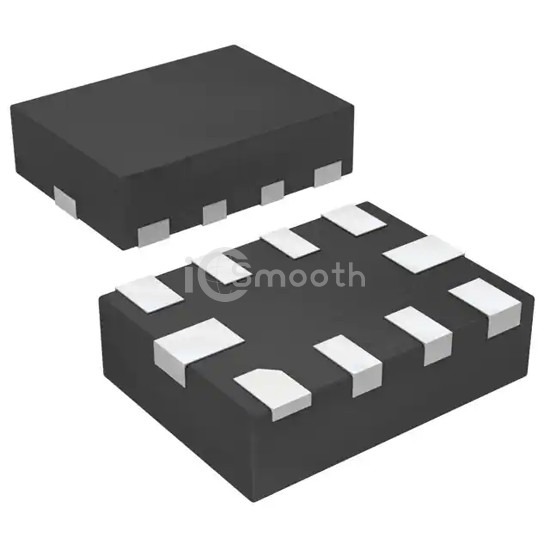

TS5A23157RSER

Texas Instruments

IC SWITCH DUAL SPDT 10UQFN

TS5A23157RSER is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Texas Instruments. IC SWITCH DUAL SPDT 10UQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-UFQFN, number of circuits 2.

Datasheet Request a Quote

In Stock: 4,939

Tiered Pricing USD

1+ $0.5200 —

10+ $0.3620 -30%

25+ $0.3240 -38%

100+ $0.2816 -46%

250+ $0.2614 -50%

500+ $0.2492 -52%

1,000+ $0.2392 -54% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	2
On-State Resistance (Max)	10Ohm
Channel-to-Channel Matching (ΔRon)	150mOhm
Voltage - Supply, Single (V+)	1.65V ~ 5.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	5.7ns, 3.8ns

-3db Bandwidth	220MHz
Charge Injection	7pC
Channel Capacitance (CS(off), CD(off))	5.5pF
Current - Leakage (IS(off)) (Max)	1µA
Crosstalk	-66dB @ 10MHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	10-UFQFN
Supplier Device Package	10-UQFN (2.0x1.5)
