Name: TS5A22366YFCR
Brand: Texas Instruments
SKU: TS5A22366YFCR
Price: 1.10 USD
Availability: InStock

REF: TS5A22366YFCR Texas Instruments

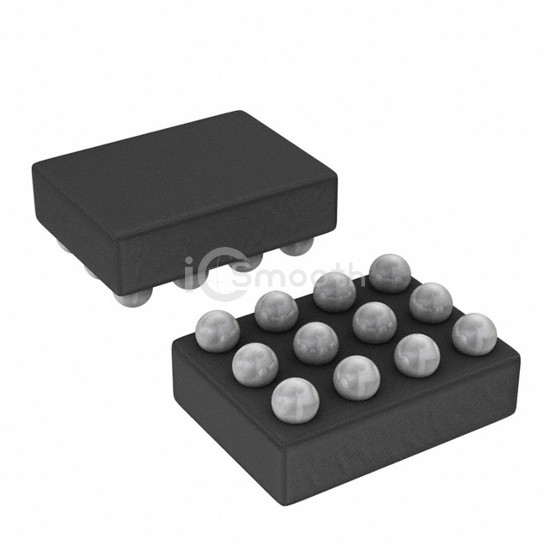

TS5A22366YFCR

Texas Instruments

IC SWITCH DUAL SPDT 12DSBGA

TS5A22366YFCR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Texas Instruments. IC SWITCH DUAL SPDT 12DSBGA. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 12-UFBGA, DSBGA, number of circuits 2.

Datasheet Request a Quote

In Stock: 276,346

Tiered Pricing USD

1+ $1.1000 —

10+ $0.7960 -28%

25+ $0.7192 -35%

100+ $0.6347 -42%

250+ $0.5945 -46%

500+ $0.5703 -48%

1,000+ $0.5503 -50% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	2
On-State Resistance (Max)	1Ohm
Channel-to-Channel Matching (ΔRon)	100mOhm
Voltage - Supply, Single (V+)	2.25V ~ 5.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	374ns, 325ns

-3db Bandwidth	32MHz
Charge Injection	168pC
Channel Capacitance (CS(off), CD(off))	48pF
Current - Leakage (IS(off)) (Max)	50nA
Crosstalk	-70dB @ 100kHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	12-UFBGA, DSBGA
Supplier Device Package	12-DSBGA (1.57x1.17)
