Name: TS3DS26227YZTR
Brand: Texas Instruments
SKU: TS3DS26227YZTR
Price: 0.74 USD
Availability: InStock

REF: TS3DS26227YZTR Texas Instruments

TS3DS26227YZTR

Texas Instruments

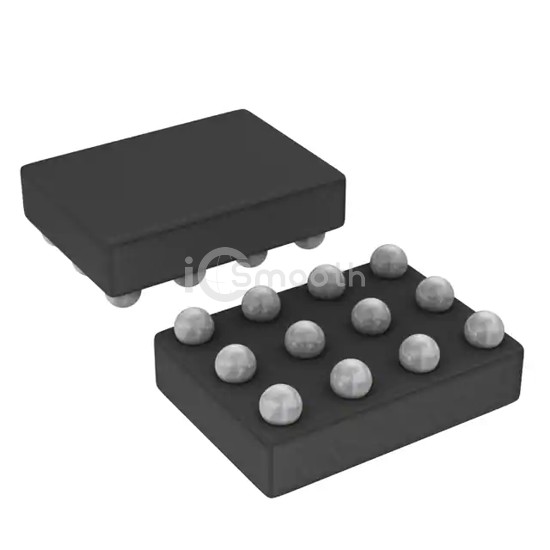

IC SWITCH DUAL SPDT 12DSBGA

TS3DS26227YZTR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Texas Instruments. IC SWITCH DUAL SPDT 12DSBGA. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 12-UFBGA, DSBGA, number of circuits 2.

Datasheet Request a Quote

In Stock: 3,874

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	2
On-State Resistance (Max)	5Ohm
Channel-to-Channel Matching (ΔRon)	50mOhm
Voltage - Supply, Single (V+)	2.3V ~ 3.6V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	9ns, 4ns

-3db Bandwidth	80MHz
Charge Injection	5.5pC
Channel Capacitance (CS(off), CD(off))	3.5pF
Current - Leakage (IS(off)) (Max)	5nA
Crosstalk	-39dB @ 200MHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	12-UFBGA, DSBGA
Supplier Device Package	12-DSBGA (1.9x1.4)
