Name: TS3A5223RSWR
Brand: Texas Instruments
SKU: TS3A5223RSWR
Price: 0.60 USD
Availability: InStock

REF: TS3A5223RSWR Texas Instruments

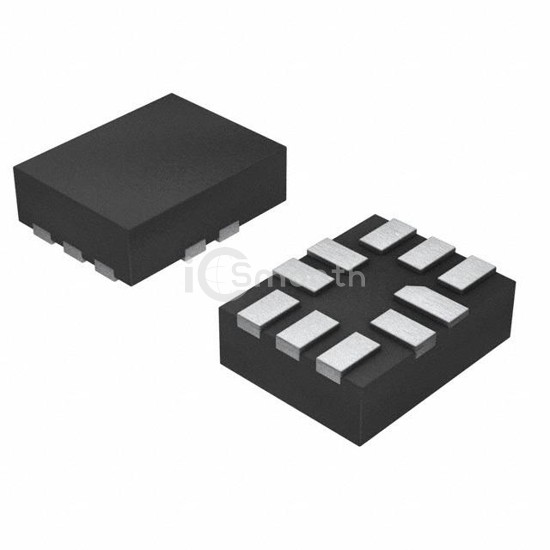

TS3A5223RSWR

IC SWITCH 2 X SPDT 10UQFN

TS3A5223RSWR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Texas Instruments. IC SWITCH 2 X SPDT 10UQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-UFQFN, number of circuits 2.

Datasheet Request a Quote

In Stock: 6,997

Tiered Pricing USD

1+ $0.6000 —

10+ $0.4240 -29%

25+ $0.3800 -37%

100+ $0.3315 -45%

250+ $0.3083 -49%

500+ $0.2943 -51%

1,000+ $0.2828 -53% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	2
On-State Resistance (Max)	600mOhm
Channel-to-Channel Matching (ΔRon)	50mOhm
Voltage - Supply, Single (V+)	1.65V ~ 3.6V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	70ns, 75ns

-3db Bandwidth	80MHz
Charge Injection	40pC
Channel Capacitance (CS(off), CD(off))	50pF
Current - Leakage (IS(off)) (Max)	5nA
Crosstalk	-75dB @ 100kHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	10-UFQFN
Supplier Device Package	10-UQFN (1.8x1.4)
