Name: TS3A5018RGYRG4
Brand: Texas Instruments
SKU: TS3A5018RGYRG4
Price: 0.32 USD
Availability: InStock

REF: TS3A5018RGYRG4 Texas Instruments

TS3A5018RGYRG4

Texas Instruments

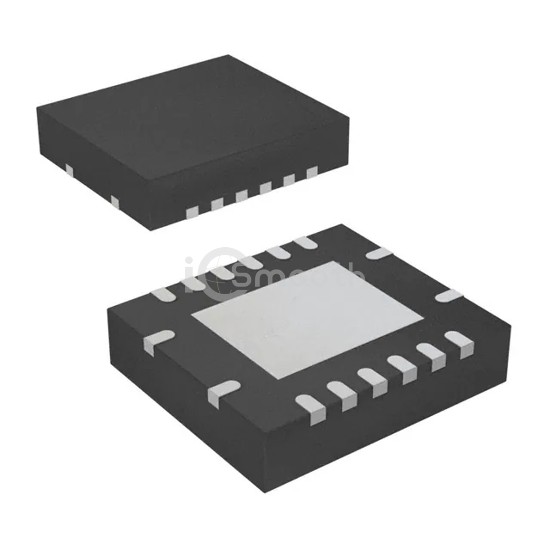

IC SWITCH QUAD SPDT 16VQFN

TS3A5018RGYRG4 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Texas Instruments. IC SWITCH QUAD SPDT 16VQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-VFQFN Exposed Pad, number of circuits 4.

Datasheet Request a Quote

In Stock: 8,405

Tiered Pricing USD

3,000+ $0.3240 —

6,000+ $0.3159 -3%

9,000+ $0.3118 -4%

15,000+ $0.3073 -5%

21,000+ $0.3047 -6%

30,000+ $0.3021 -7% BEST

Specifications

18 parameters

Product Status	Discontinued at Digi-Key
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	4
On-State Resistance (Max)	10Ohm
Channel-to-Channel Matching (ΔRon)	300mOhm
Voltage - Supply, Single (V+)	1.65V ~ 3.6V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	8ns, 6.5ns

-3db Bandwidth	300MHz
Charge Injection	2pC
Channel Capacitance (CS(off), CD(off))	4.5pF, 9pF
Current - Leakage (IS(off)) (Max)	100nA
Crosstalk	-48dB @ 10MHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	16-VFQFN Exposed Pad
Supplier Device Package	16-VQFN (4x3.5)
