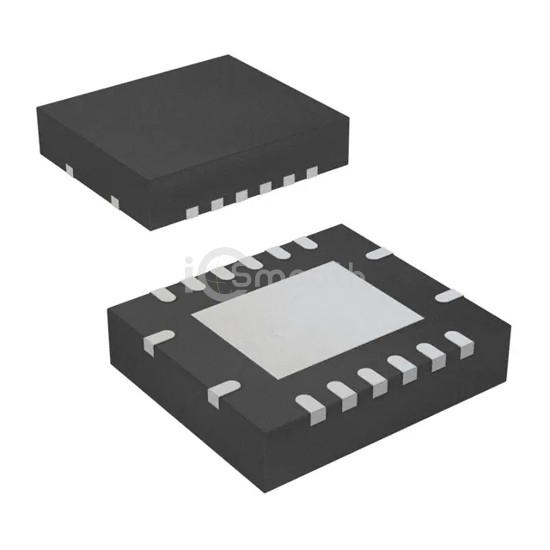

Name: TS3A5018RGYR
Brand: Texas Instruments
SKU: TS3A5018RGYR
Price: 0.80 USD
Availability: InStock

REF: TS3A5018RGYR Texas Instruments

TS3A5018RGYR

IC SWITCH QUAD SPDT 16VQFN

TS3A5018RGYR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Texas Instruments. IC SWITCH QUAD SPDT 16VQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-VFQFN Exposed Pad, number of circuits 4.

Datasheet Request a Quote

In Stock: 15

Tiered Pricing USD

1+ $0.8000 —

10+ $0.5740 -28%

25+ $0.5160 -36%

100+ $0.4528 -43%

250+ $0.4226 -47%

500+ $0.4043 -49%

1,000+ $0.3893 -51% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	4
On-State Resistance (Max)	10Ohm
Channel-to-Channel Matching (ΔRon)	300mOhm
Voltage - Supply, Single (V+)	1.65V ~ 3.6V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	8ns, 6.5ns

-3db Bandwidth	300MHz
Charge Injection	2pC
Channel Capacitance (CS(off), CD(off))	4.5pF, 9pF
Current - Leakage (IS(off)) (Max)	100nA
Crosstalk	-48dB @ 10MHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	16-VFQFN Exposed Pad
Supplier Device Package	16-VQFN (4x3.5)
