Name: TS3A5017RGYR
Brand: Texas Instruments
SKU: TS3A5017RGYR
Price: 1.06 USD
Availability: InStock

REF: TS3A5017RGYR Texas Instruments

TS3A5017RGYR

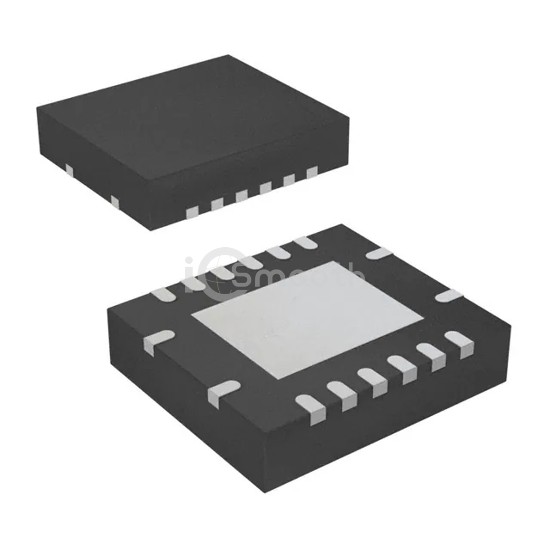

IC SWITCH QUAD SP4T 16VQFN

TS3A5017RGYR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Texas Instruments. IC SWITCH QUAD SP4T 16VQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-VFQFN Exposed Pad, number of circuits 2.

Datasheet Request a Quote

In Stock: 8,809

Tiered Pricing USD

1+ $1.0600 —

10+ $0.7650 -28%

25+ $0.6908 -35%

100+ $0.6092 -43%

250+ $0.5703 -46%

500+ $0.5469 -48%

1,000+ $0.5276 -50% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SP4T
Multiplexer/Demultiplexer Circuit	4:1
Number of Circuits	2
On-State Resistance (Max)	12Ohm
Channel-to-Channel Matching (ΔRon)	1Ohm
Voltage - Supply, Single (V+)	2.3V ~ 3.6V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	9.5ns, 3.5ns

-3db Bandwidth	165MHz
Charge Injection	5pC
Channel Capacitance (CS(off), CD(off))	4.5pF, 19pF
Current - Leakage (IS(off)) (Max)	100nA
Crosstalk	-49dB @ 1MHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	16-VFQFN Exposed Pad
Supplier Device Package	16-VQFN (4x3.5)
