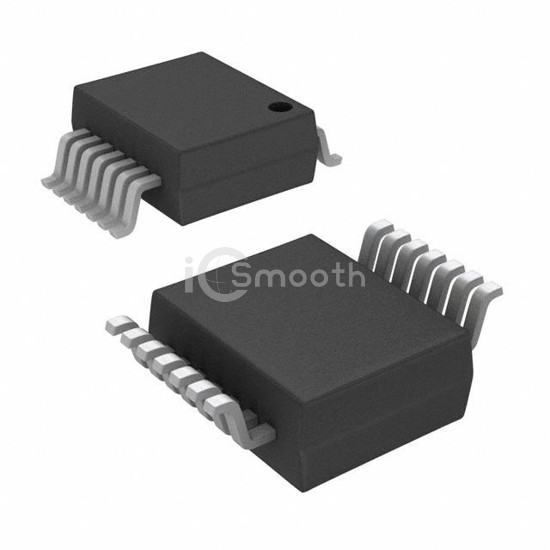

Name: TS3A5017DGVR
Brand: Texas Instruments
SKU: TS3A5017DGVR
Price: 0.81 USD
Availability: InStock

REF: TS3A5017DGVR Texas Instruments

TS3A5017DGVR

IC SWITCH SP4T DUAL 16TVSOP

TS3A5017DGVR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Texas Instruments. IC SWITCH SP4T DUAL 16TVSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-TFSOP (0.173", 4.40mm Width), number of circuits 2.

Datasheet Request a Quote

In Stock: 2,000

Tiered Pricing USD

1+ $0.8100 —

10+ $0.5800 -28%

25+ $0.5216 -36%

100+ $0.4576 -44%

250+ $0.4272 -47%

500+ $0.4088 -50%

1,000+ $0.3936 -51% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SP4T
Multiplexer/Demultiplexer Circuit	4:1
Number of Circuits	2
On-State Resistance (Max)	12Ohm
Channel-to-Channel Matching (ΔRon)	1Ohm
Voltage - Supply, Single (V+)	2.3V ~ 3.6V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	9.5ns, 3.5ns

-3db Bandwidth	165MHz
Charge Injection	5pC
Channel Capacitance (CS(off), CD(off))	4.5pF, 19pF
Current - Leakage (IS(off)) (Max)	100nA
Crosstalk	-49dB @ 1MHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	16-TFSOP (0.173", 4.40mm Width)
Supplier Device Package	16-TVSOP
