Name: TS3A4751RUCR
Brand: Texas Instruments
SKU: TS3A4751RUCR
Price: 1.87 USD
Availability: InStock

REF: TS3A4751RUCR Texas Instruments

TS3A4751RUCR

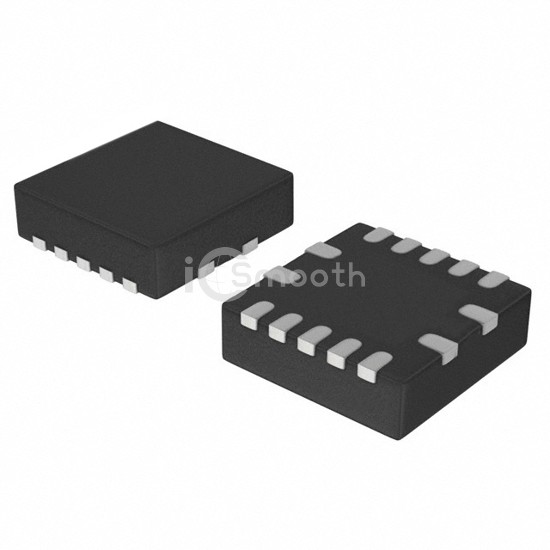

IC SWITCH QUAD SPST 14QFN

TS3A4751RUCR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Texas Instruments. IC SWITCH QUAD SPST 14QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 14-XFQFN, number of circuits 4.

Datasheet Request a Quote

In Stock: 101

Tiered Pricing USD

1+ $1.8700 —

10+ $1.3740 -27%

25+ $1.2504 -33%

100+ $1.1146 -40%

250+ $1.0499 -44%

500+ $1.0109 -46%

1,000+ $0.9788 -48% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPST - NO
Multiplexer/Demultiplexer Circuit	1:1
Number of Circuits	4
On-State Resistance (Max)	900mOhm
Channel-to-Channel Matching (ΔRon)	30mOhm
Voltage - Supply, Single (V+)	1.6V ~ 3.6V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	14ns, 9ns

-3db Bandwidth	125MHz
Charge Injection	3pC
Channel Capacitance (CS(off), CD(off))	23pF, 20pF
Current - Leakage (IS(off)) (Max)	2nA
Crosstalk	-95dB @ 1MHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	14-XFQFN
Supplier Device Package	14-QFN (2x2)
