Name: TS12A12511DCNR
Brand: Texas Instruments
SKU: TS12A12511DCNR
Price: 2.16 USD
Availability: InStock

REF: TS12A12511DCNR Texas Instruments

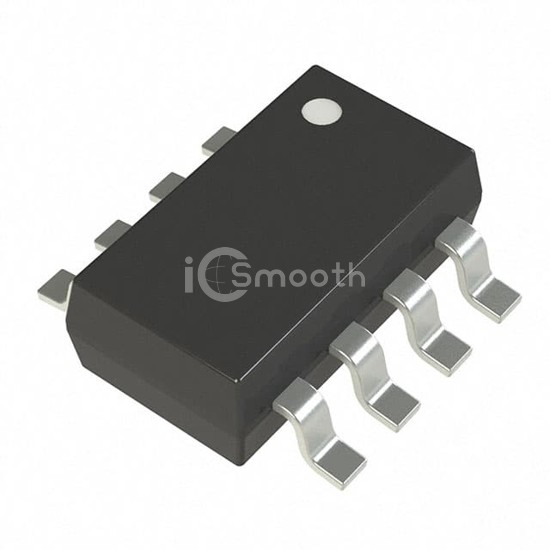

TS12A12511DCNR

Texas Instruments

IC SWITCH SGL SPDT ANLG SOT23-8

TS12A12511DCNR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Texas Instruments. IC SWITCH SGL SPDT ANLG SOT23-8. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case SOT-23-8, number of circuits 1.

Datasheet Request a Quote

In Stock: 1,713

Tiered Pricing USD

1+ $2.1600 —

10+ $1.5960 -26%

25+ $1.4552 -33%

100+ $1.3005 -40%

250+ $1.2268 -43%

500+ $1.1824 -45%

1,000+ $1.1459 -47% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	1
On-State Resistance (Max)	5Ohm (Typ)
Channel-to-Channel Matching (ΔRon)	1Ohm
Voltage - Supply, Single (V+)	2.7V ~ 12V
Voltage - Supply, Dual (V±)	±2.7V ~ 6V
Switch Time (Ton, Toff) (Max)	95ns, 50ns

-3db Bandwidth	93MHz
Charge Injection	26pC
Channel Capacitance (CS(off), CD(off))	14pF
Current - Leakage (IS(off)) (Max)	1nA
Crosstalk	-70dB @ 1MHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	SOT-23-8
Supplier Device Package	SOT-23-8
